Elbow Joint Pipe Fittings Elbow Pipe Connector Zinc Plated Surface Treatment

Brand Name : XD

Model Number : 1CFL9

Place of Origin : China

MOQ : 300PCS

Price : negotiable

Payment Terms : D/P, L/C, T/T

Supply Ability : 100000 Piece/Pieces per Month hydraulic reducer pipe reducing fitting

Delivery Time : 20-30 days after the receipt of deposite

Packaging Details : export carton, wood pallet

Contact Now

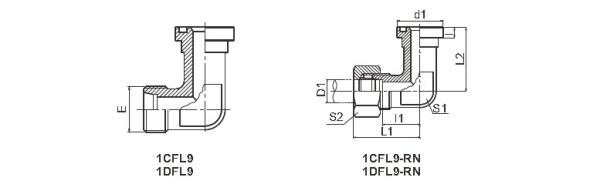

90°ELBOW METRIC MALE BITE TYPE / L-SERIES FLANGE ISO 6162-1

  • DIN Hydraulic Fittings
  • BSP Thread Adapter
  • JIC Hydraulic Adapters
  • Metric Hydraulic Adapters
  • SAE Flange Adapter
  • Hydraulic Hose Fittings JIC
  • BSP Hydraulic Fittings
  • Metric Hydraulic Hose Fittings
  • SAE Flange Fittings
  • Reusable Hose Fittings
  • Interlock Hose Fittings
  • Socketless Hose Fittings
  • Hydraulic Hose Ferrule

Elbow Joint Pipe Fittings Elbow Pipe Connector Zinc Plated Surface Treatment

PART NO. THREAD E FLANGE SIZE D1 O-RING DIMENSIONS MPa
TUBE O.D. d1 l l1 L1 L2 S1 S2
1CFL9-22-08 M22X1.5 1/2" 15 O210 30.2 6.7 29 44 36 24 27 31.5 L
1CFL9-26-12 M26X1.5 3/4" 18 O214 38.1 6.7 31.5 48 42 30 32
1CFL9-30-12 M30X2 3/4" 22 O214 38.1 6.7 33.5 50 42 30 36 16 L
1CFL9-36-16 M36X2 1" 28 O219 44.4 8 36.5 53 45 36 41
1CFL9-45-20 M45X2 1.1/4" 35 O222 50.8 8 46.5 68 50 41 50
1CFL9-52-24 M52X2 1.1/2" 42 O225 60.3 8 47 70 55 50 60
1DFL9-24-08 M24X1.5 1/2" 16 O210 30.2 6.7 29.5 48 36 24 30 35 S
1DFL9-30-12 M30X2 3/4" 20 O214 38.1 6.7 32.5 54 42 30 36
1DFL9-36-12 M36X2 3/4" 25 O214 38.1 6.7 33 57 42 30 46
1DFL9-42-16 M42X2 1" 30 O219 44.4 8 36.5 63 45 36 50
1DFL9-36-20 M36X2 1.1/4" 25 O222 50.8 8 43 67 50 41 46 28 S
1DFL9-42-20 M42X2 1.1/4" 30 O222 50.8 8 43.5 70 50 41 50
1DFL9-52-20 M52X2 1.1/4" 38 O222 50.8 8 43 74 50 41 60
1DFL9-52-24 M52X2 1.1/2" 38 O225 60.3 8 48 79 55 50 60 21 S

Note:In case if you are interested to order the adapter in complete set with cutting ring and nut , it is necessary to insert suffix "RN" after our part NO.,for example 1DFL9-52-24RN.

We are specialized in all kinds of hydraulic hose fittings, adapters, ferrules, flanges.

We can provide OEM service and develop new products according to customer's drawings and samples.

  1. Material: carbon steel, stainless steel, brass, etc.
  2. Surface treatment: Zinc plated, Zn-Ni plated, Cr3, Cr6 plated
  3. Standard:SAE, DIN, ISO, BS.
  4. Thread: metric, bsp, bspt, npt, jic, sae, orfs, npsm, etc.
