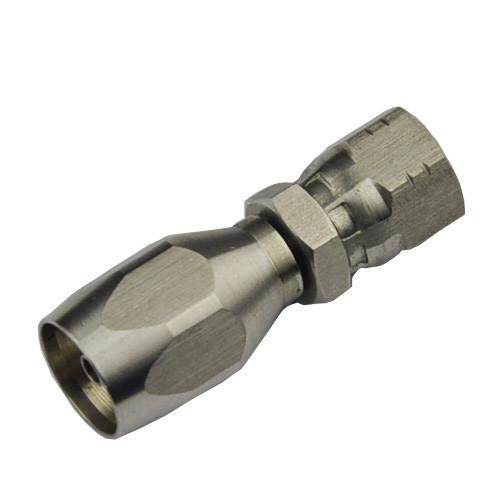

Stainless Steel Reusable Hose End Fittings / Reusable Hose Couplings

Brand Name : XD

Model Number : 26718D-R5

Place of Origin : NINGBO CHINA

MOQ : negotiable

Price : negotiable

Payment Terms : D/P, L/C, T/T

Supply Ability : 100000 Piece/Pieces per Month hydraulic reducer pipe reducing fitting

Delivery Time : wihtin 30 days or as percustomers' requlement.

Packaging Details : export carton, wood pallet

Material : Stainless Steel, Brass, stainless steel, carbon steeL

Thread : JIC

Type : Coupling

Connection : FEMALE

Color : ucp

Surface treatment : Cr+3, Cr+6, Zn-Ni, Zinc plated

Shape : Equal

Contact Now

Reusable Jic Female 74 Degree Flared One Piece Fitting (26718D-R5) SAE J514

​

  • DIN Hydraulic Fittings
  • BSP Thread Adapter
  • JIC Hydraulic Adapters
  • Metric Hydraulic Adapters
  • SAE Flange Adapter
  • Hydraulic Hose Fittings JIC
  • BSP Hydraulic Fittings
  • Metric Hydraulic Hose Fittings
  • SAE Flange Fittings
  • Reusable Hose Fittings
  • Interlock Hose Fittings
  • Socketless Hose Fittings
  • Hydraulic Hose Ferrule

Stainless Steel Reusable Hose End Fittings / Reusable Hose Couplings

PART NO. THREAD E HOSE DASH DIMENSIONS
A C S1 S2
26718D-04-04(R5) 7/16"X20 04 22 9 14 15
26718D-05-05(R5) 1/2"X20 05 25.4 9.5 14 17
26718D-06-06(R5) 9/16"X18 06 24.5 10.5 17 19
26718D-08-08(R5) 3/4"X16 08 31.5 11 22 24
26718D-10-10(R5) 7/8"X14 10 34 13 27 27
26718D-12-12(R5) 1.1/16"X12 12 37 15 32 32
26718D-16-16(R5) 1.5/16"X12 16 33.5 16 38 41
26718D-20-20(R5)W 1.5/8"X12 20 41.5 17 41 50
26718D-24-24(R5)W 1.7/8"X12 24 43 20 46 55
26718D-32-32(R5)W 2.1/2"X12 32 45.5 23.5 65 75

We are specialized in all kinds of hydraulic hose fittings, adapters, ferrules, flanges.

We can provide OEM service and develop new products according to customer's drawings and samples.

  1. Material: carbon steel, stainless steel, brass, etc.
  2. Surface treatment: Zinc plated, Zn-Ni plated, Cr3, Cr6 plated
  3. Standard:SAE, DIN, ISO, BS.
  4. Thread: metric, bsp, bspt, npt, jic, sae, orfs, npsm, etc.
